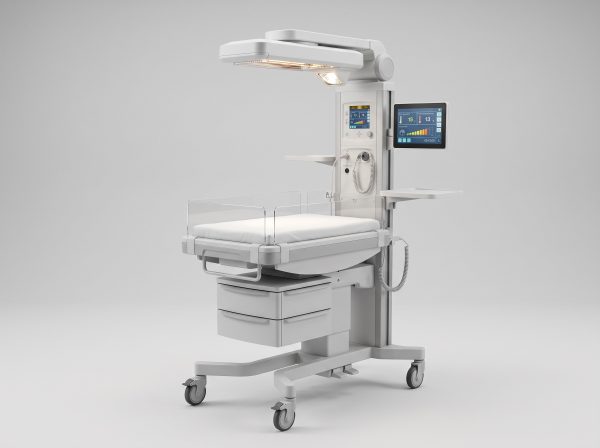

Baby Warmer

Baby Warmer

Pricing Available Upon Quote Request

Microprocessor-controlled infant radiant warmer equipped with quartz infrared heating, servo skin temperature control, integrated Apgar timer, and phototherapy capability.

✓ CE & ISO 13485 Certified
✓ B2B Institutional Volume Discounts
✓ Quick Quote Response
✓ Global Clinical Freight Available
SKU: PED-BWM-1102 Category:

Clinical Overview

The CorpusNov Infant Radiant Warmer & Resuscitation Suite provides comprehensive thermoregulation, life-support staging, and resuscitation environment for newborns and premature infants in delivery suites and NICUs. Powered by a microcomputer PID controller, it delivers uniform radiant infrared heat across the bassinet while monitoring core skin temperature via high-sensitivity thermistors.

Key Clinical Features

  • Ceramic far-infrared quartz radiant heating element with parabolic reflector for homogeneous thermal dispersion.
  • Microprocessor servo skin temperature control mode with automatic power modulation and manual pre-warm setting.
  • Smooth electric Trendelenburg and Reverse-Trendelenburg tilt mechanism (±15°) for neonatal airway positioning.
  • Integrated multi-angle LED inspection lamp and optional intensive blue LED phototherapy module for neonatal jaundice.
  • Under-mattress X-ray cassette tray allowing full diagnostic chest radiography without moving the infant.

Equipment Engineering & Clinical Specifications

Heating ElementQuartz far-infrared radiant heating tube (600W with parabolic reflector)
Temperature Control ModesPre-warm, Manual, and Servo Baby (Skin) Auto Mode (34.0°C - 38.0°C)
Temperature Accuracy±0.2°C over clinical range with ultra-sensitive skin thermistor probe
Bassinet Tilt Angle±15° continuous Trendelenburg / Reverse-Trendelenburg tilt
Display & Monitor8.0-inch Color LCD showing set temp, skin temp, APGAR timer, and heater output
Safety AlarmsOver-temperature (>38.5°C), sensor disconnect, power failure, deviation ±1.0°C

Quality Assurance & Clinical Standards

This medical device is manufactured and certified in accordance with global healthcare standards:

  • Quality Management: ISO 13485:2016 Certified Facility
  • Regulatory Clearance: CE Marked & FDA Class I/II Registered (as applicable)
  • Electrical Safety: IEC 60601-1 Medical Electrical Equipment Standards
  • Warranty: Standard 24-Month Manufacturer Commercial & Clinical Warranty with optional multi-year extended maintenance agreements
  • Technical Support: Comprehensive installation, biomedical calibration, and operator training manuals included
